Manufacturer of plastic Lined Piping, Valves & Equipments.



TECHNICAL DATA

  • Pressure range: 0-16 bar
  • Temperature range: 0 to 200 deg.C
  • vacuum Resistance: Full vacuum
  • Face to Face: As per PPL standard
  • Flange drilling : ANSI B16.42/B16.5-150#,
  • Options: ANSI B16.42/B16.5-300#, DIN PN 10/16

SALIENT FEATURES

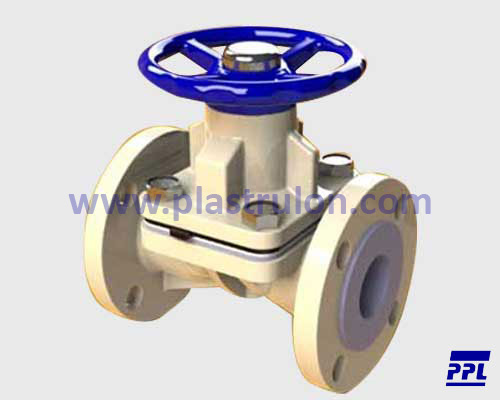

  • Available in Standard Weir Types design with rising stem & flanged ends.
  • Choice of four differenr fluoroplastic lining materials to provide corrosion and temperature resistance for almost all applications.

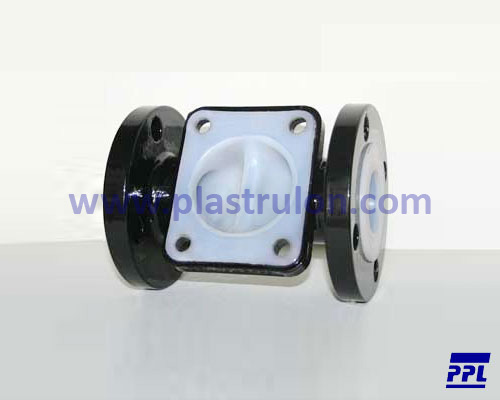

  • Extra thick locked-in-lining for high vacuum rating(minimum 3mm).
  • PTFE diaphragm with elastomeric backing provide excellent sealing capabilities.
  • External protection against corrosion with epoxy coating, stainless steel fasteners.
  • Plastic end protectors on each flange to protect the liner faces.
